High Voltage Dividers
We at Zeonics Systech manufacture a wide variety of A.C. and D.C. Dividers. Essentially A.C. Dividers are Capacitive in nature and D.C. are Resistive in nature.
D.C.Dividers
| Type | Wkg.VoltageD.C | Ratio | H.V.Leakage Current | Measurement | Max.Output at Max.K.V |
| ZE/VD/50 | 50KV | 1000:1 | <100microAmps | 3 1/2 digit DPM LED Display | 50V |
| ZE/VD/100 | 100KV | 1000:1 | <100microAmps | 3 1/2 digit DPM LED Display | 100V |
| ZE/VD/200 | 200KV | 1000:1 | <100microAmps | 3 1/2 digit DPM LED Display | 200V |
| ZE/VD/300 | 300KV | 1000:1 | <100micro Amps | 3 1/2 digit DPM LED Display | 300V |
| ZE/VD/400 | 400KV | 1000:1 | <100micro Amps | 3 1/2 digit DPM LED Display | 400V |
All the above dividers are Bench top Models with suitable Anticorona Spheres of required Diameter. The Output is directly displayed on the Panel meter with a measuring accuracy of +/- 2%. All the meters are operated on 9Volt Batteries for ease of operation, total Isolation and safety.
 |
 |
| A.C Dividers | Max.applied Voltage | Test Voltage | H.V. Limb | L.V. Limb | Ratio |
| @60Hz | Extra | Capacitor | Capacitor | ||
| ZE/VD/AC/50 | 50KV | 20% | 100pf | 100nf | 1000:1 |
| ZE/VD/AC/100 | 100KV | 20% | 100pf | 100nf | 1000:1 |
| ZE/VD/AC/150 | 150KV | 20% | 100pf | 100nf | 1000:1 |
| ZE/VD/AC/220 | 220KV | 20% | 100pf | 100nf | 1000:1 |
The above A.C dividers are all available either in oil filled version or Gas filled version depending on the Voltage Catagory as well as Insulation level and applications. Ruggedised Military Dividers are also available on special request. We also manufacture Gas filled Voltage dividers for Higher voltage stresses. Kindly contact us for specific dividers and we can design the same for you.
Our speciality is rugged moulded Military Voltage divider probes for Radar, Missiles application.
Kindly contact us for specific requirement

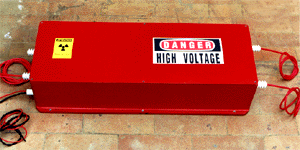

Shock Wave Generators
Zeonics Systech has been regularly involved in manufacturing a wide variety of Power rating of Shock Wave Generators from 25 Joules to 3K Joules Models. These can fire at slow repetition rate of around 30PPM. These are essentially used for Medical applications like Lithotripsy, Eye Surgery (Retina Welding) as well as certain Defence application like Explosive Wire Techniques, studying slapper Detonators, Compact Generators for Missile Stage Separation as well as Satellite Solar Panel Explosive Bolt Triggering.
 |
 |
These Generators basically contains a High Voltage D.C. Power Supply, which charges a D.C. Capacitor and this capacitor discharges through the correct Spark Gap with its associated Breakdown system to make the complete system self sufficient. These systems can transfer a wide range of voltage from 5KVDC to 80KVDC and energy from 25 Joules to 3 Kilo Joules. These are also used for triggering the compressed Generators, and Layer Capacitor Banks which are in the Mega Joules capacity . The complete Generator is designed in a Low Inductance Geometry to take advantage of the shape and hence derive maximum Peak Current from the source. Our standard shock wave generator are listed herewith.
| Type Peak Current | Energy in Joules | System voltage in KV Typical | Typical Peak Current |
| ZE/SWG/25/20 | 25 | 20 | 10KA |
| ZE/SWG/100/20 | 100 | 20 | 20KA |
| ZE/SWG/250/20 | 250 | 20 | 25KA |
| ZE/SWG/500/25 | 500 | 25 | 30KA |
| ZE/SWG/1K/30 | 1000 | 30 | 40KA |
| ZE/SWG/2K/30 | 2000 | 30 | 50KA |
| ZE/SWG/3K/30 | 3000 | 30 | 100KA |
Kindly contact us for specific requirement
